Thermoset vs. Thermoplastic Carbon Fiber: Why CF/PEEK is Revolutionizing Medical & Industrial Applications

The Quick Comparison

Before diving into the technical details, here is a quick look at how Thermoplastic CF/PEEK differs from traditional Thermoset Epoxy/CF.

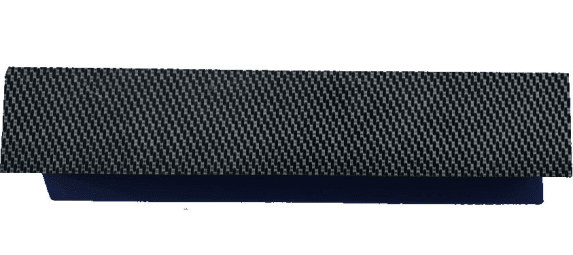

1. Traditional Leader: Thermoset Epoxy Carbon Fiber

Thermoset carbon fiber composites, primarily epoxy-based, have a mature production process. With a carbon fiber content of 60%-70% and a density of 1.7g/cm³, they offer exceptional rigidity.

Key Advantages:

• High Specific Strength: Outperforms aluminum alloys in mechanical properties.
• Lightweight: 40% lighter than aluminum and 78% lighter than stainless steel.
• Dimensional Stability: Low deformation after curing ensures precision in industrial parts.

Limitations to Consider:

The cross-linked network structure of epoxy resin makes these composites brittle. They are prone to chipping or delamination under impact, making them less suitable for orthopedic medical devices. Furthermore, their low heat resistance (carbonization starts at 300°C) and non-recyclability limit their use in high-demand or sustainable projects.

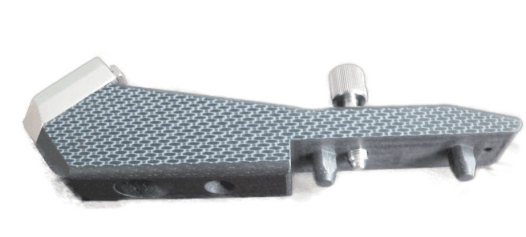

2. The High-Performance Alternative: CF/PEEK Composites

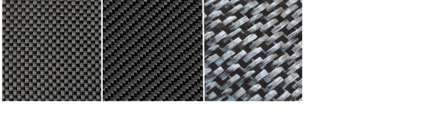

Carbon Fiber Reinforced PEEK (CF/PEEK) represents the pinnacle of thermoplastic technology. Utilizing a Satin Weave for better resin impregnation, these materials solve many of the inherent weaknesses of thermoset systems.

Why Engineers are Switching to CF/PEEK:

• Superior Thermal Stability: PEEK can withstand continuous temperatures of 260°C without losing structural integrity.
• Enhanced Toughness: Unlike brittle epoxy, the linear molecular chains of PEEK provide high impact energy absorption.
• Exceptional Bonding: Our advanced manufacturing process ensures a strong fiber-matrix interface, significantly reducing fiber release or delamination.
• Medical Excellence: Beyond being X-ray transparent (radiolucent), CF/PEEK is proven to be non-cytotoxic. It promotes bone cell protein synthesis and offers better interface bonding with bone than traditional metal implants.

3. Selecting the Right Material for Your Project

Choosing between these two depends on your specific application environment:

• Choose Thermoset Epoxy for general industrial components, automotive body parts, or structural reinforcements where cost-efficiency and high rigidity are the priorities.
• Choose CF/PEEK for medical implants, aerospace components, or high-temperature chemical environments where impact resistance, biocompatibility, and chemical inertness are non-negotiable.

Technical Consultation & Manufacturing

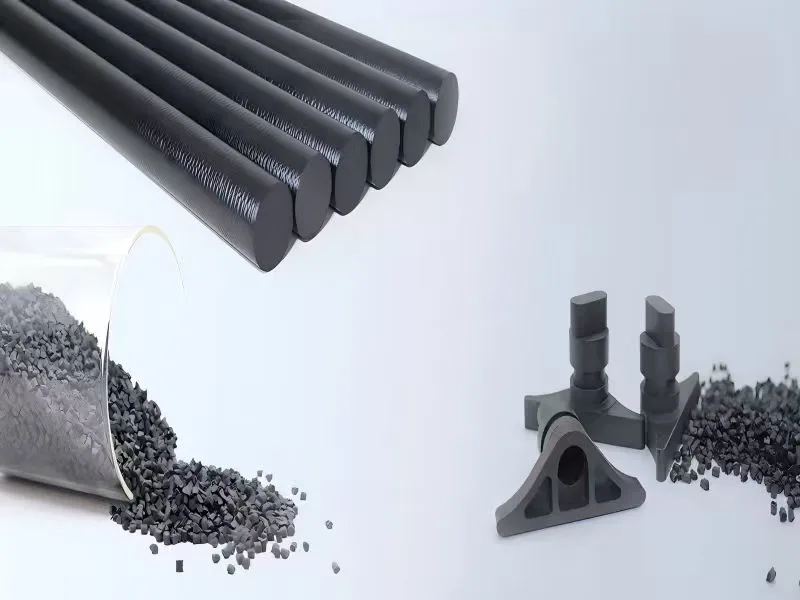

At Zhiling Special Plastic, we specialize in the manufacturing and precision machining of high-temperature engineering plastics. Whether you need PEEK granules or finished CF/PEEK plates and rods, our facility in Dongguan is equipped to provide expert technical support and customized solutions.

Expert Tip: For high-precision medical parts, always verify the sterilization compatibility. CF/PEEK maintains its properties even after repeated autoclave cycles, a feat epoxy composites cannot match.
